NGC 253

• NGC 253 is a Spiral galaxy of type Sc(s) in the Sculptor Group. An image of each wavelength region can be viewed by clicking on each small image below. The X-ray, Radio and Infrared images also have a contour outline that shows the edge of the optical galaxy for comparison.
• NOTE: The IRAS 60 micron image is affected by an instrumental effect. The faint spurs and extensions at large radii are spurious.

  Image information

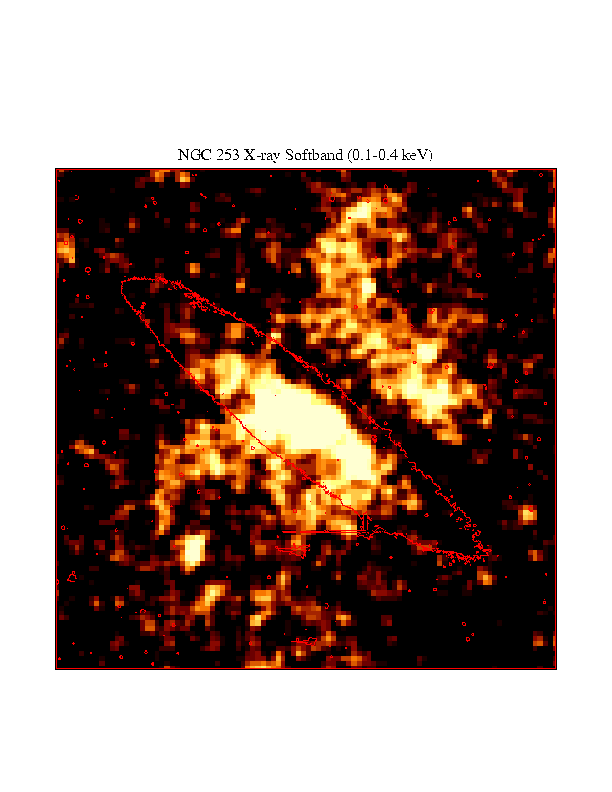

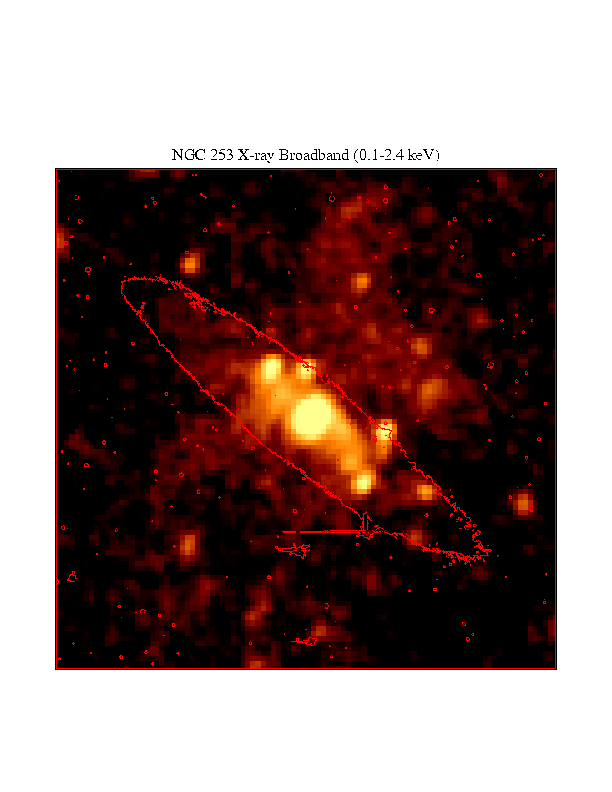

• X-ray: ROSAT PSPC, (0.1-2.4 keV) and (0.1-0.4 keV), Observer: W. Pietsch (Pietsch, W. 1993, in Panchromatic View of Galaxies, ed. Hensler, Theis, Gallagher (Editions Frontieres) p. 137)

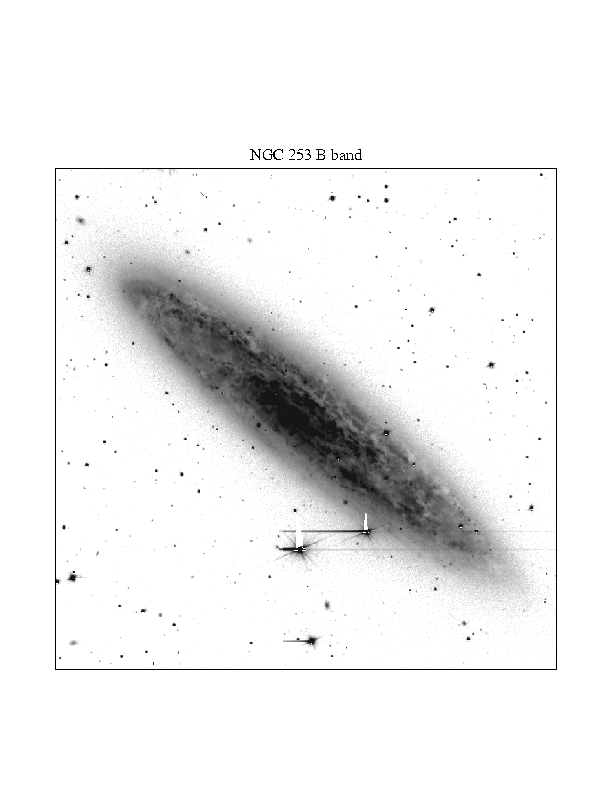

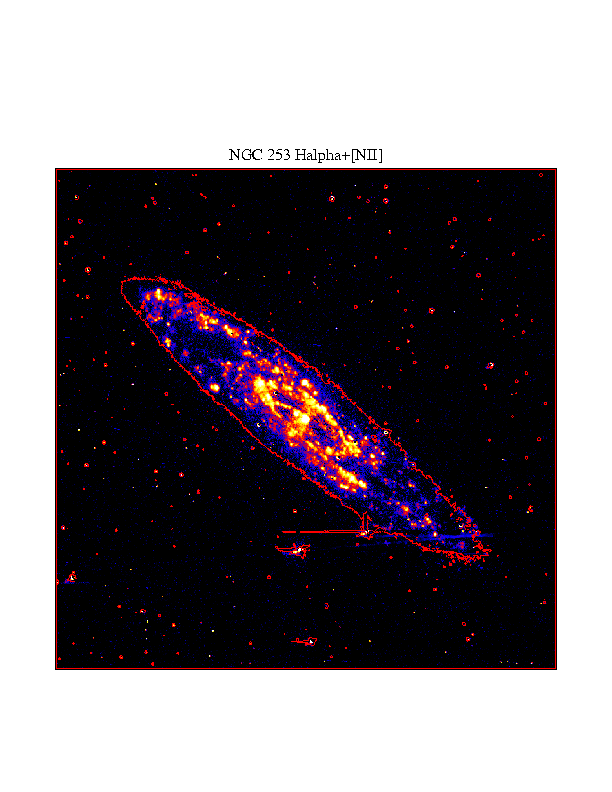

• Optical: CTIO Curtis Schmidt, B band and Halpha+[NII], Observer: G. Mackie

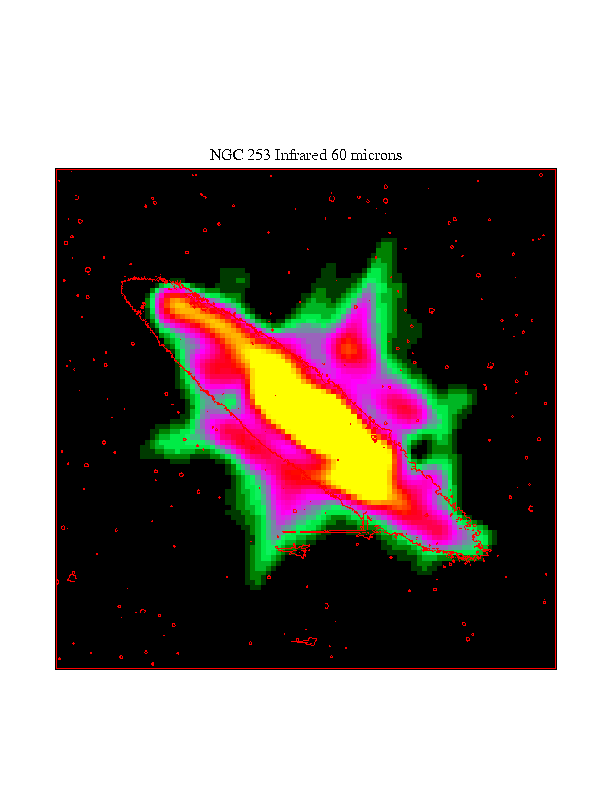

• Infrared: IRAS, 60 micron, Data: W. Rice (Rice, W. 1993, AJ, 105, 67)

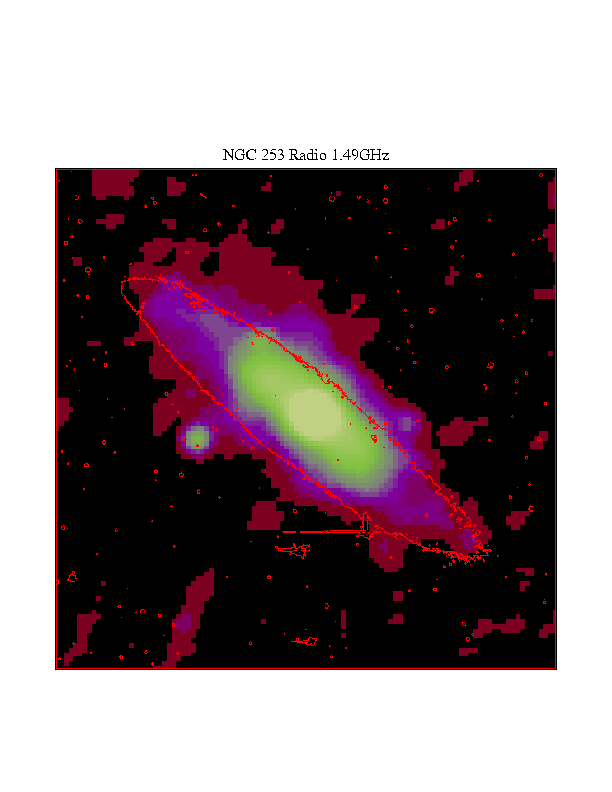

• Radio: VLA D and C/D, 1.49 GHz, Observer: J.J. Condon (Condon, J.J. 1987, ApJSupp, 65, 485)

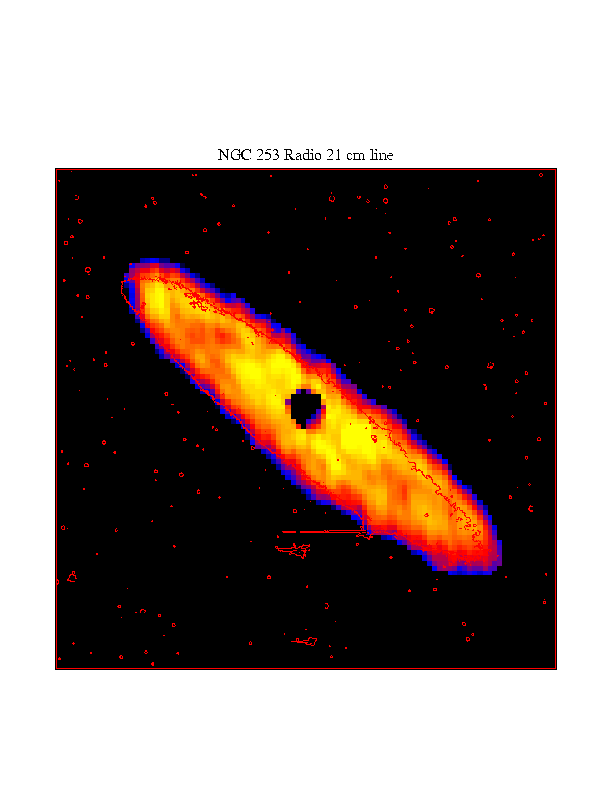

• Radio: VLA D, 21 cm, 68x42" FWHM, Observers: A. Bosma, C. Carignan, D. Puche, J. van Gorkom, R. Wainscoat (Puche, D., Carignan, C. van Gorkhom, J.H. 1991, AJ, 101, 456; Puche, D., Carignan, C. 1991, ApJ, 378, 487)

---




..... X-ray ........... Optical ......... Far-Infrared ........ Radio ......





......... Soft X-ray ..... Optical Line .... Radio HI .........

---

---
